Black Color 3500KG Hydraulic Loading Equipment Platform Elevating Dock Lift

Description:

Hydraulic loading equipment are used for lifting and lowering goods at required heights in safe conditions for the operator. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders and hydraulic motor. Hydraulic loading equipment have become a commonly used type of equipment in many different industries. You can save the high cost of loading dock construction, work from any truck bed level to grade level and handle unstable loads quickly and safely with hydraulic dock lifts. Hydraulic loading equipment can be installed indoors or outdoors, pit mounted, pad mounted or surface mounted.

If Can not suitable have a pit.Low profile scissor lift, due to their low closed height, do not require a floor pit, offering the flexibility of location and keeping installation costs to a minimum.Low profile scissor lift is widely used in places where the ground is not suitable to make a pit.

Noted: Usually small scissor lifts width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves
• 10. Lift type, electric hydraulic scissor

Parameters:

• 1. Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic dock lifts precautions:

• 1. Manual decline valve
• 2. Explosion proof valves between oil cylinder and oil tube.
• 3. Number of floor layers indicator
• 4. Door inter-locking device if indeed need.
• 5. Over height protect
• 6. Running indicator
• 7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Small scissor lifts application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

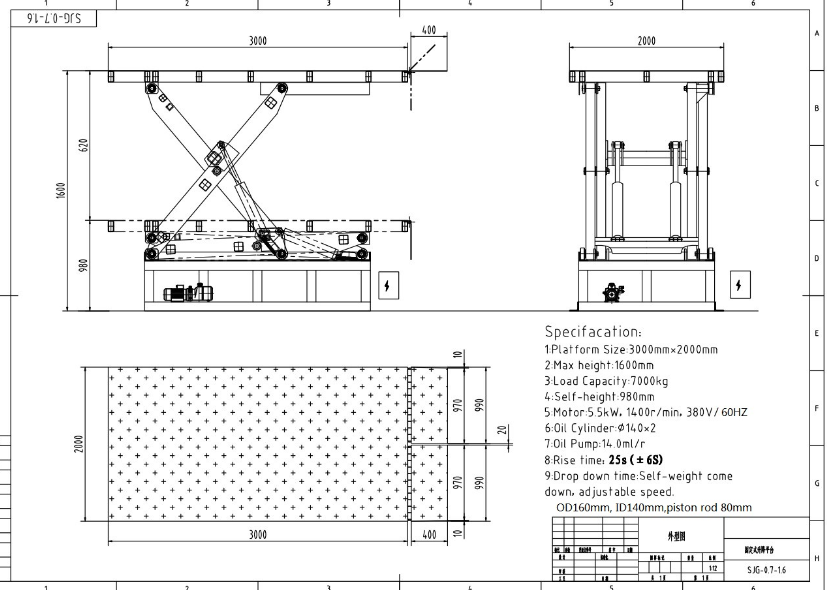

Custom hydraulic dock lift from client feedback:
