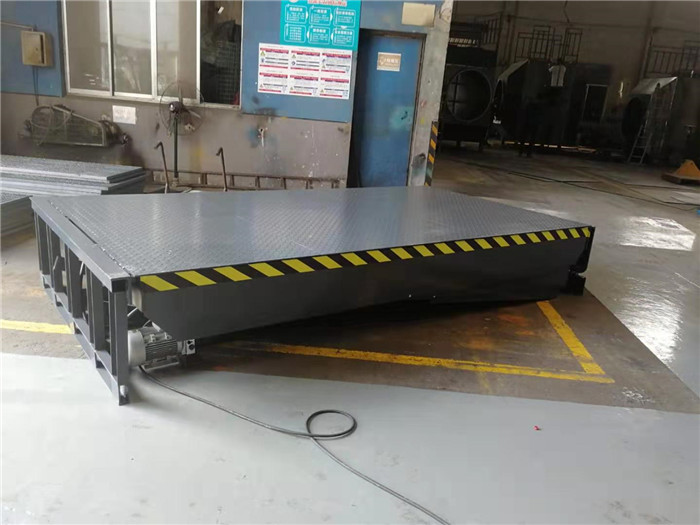

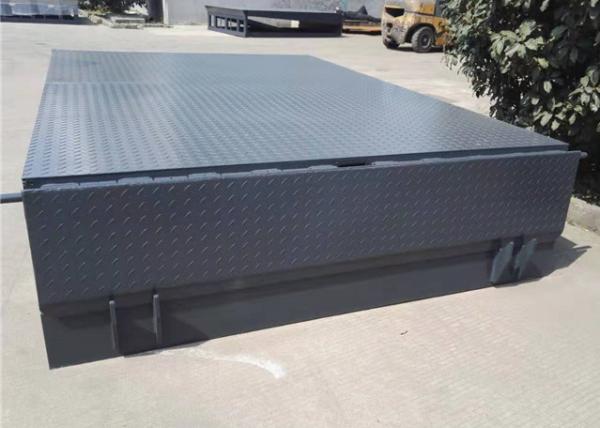

Warehouse Dock Equipment Hydraulic Dock Levelers 10Ton ,12Ton, 15Ton

Hydraulic Dock Levelers Description:

• Hydraulic Dock Leveler a kind of dock equipment for warehouse loading and unloading. It is easy operation just one button to conrol it.When you press the control button,the lip will automatically rise.The lip opens when it rises to the highest point.When you release the control button, the dock leveler will automatically fall down and put on the floor of the truck.
• When you are finished loading and unloading, press and hold the control button,dock leveler lift up away from the truck.When the button is released, the deck is lowered and the lip is closed.Press the control button again to increase the dock leveler to a height of 20 centimeters, and then release the button to return to the origin position.

Noted: Usually the folding dock levelers width is 1800mm or 2000mm, it also can be custom as your requirements!

Main Features:

• 1. 16mm thickness diamond lip
• 2. Heavay duty deck construction
• 3. Anti-skid high-strength steel with checkered on the top face of platform.
• 4. Full width one -piece lip with hinges type or sleeve type.
• 5.Heavy duty high pressure cylinders
• 6.First class hydraulic power unit, good seal capacity and long life
• 7.250mm×250×100mm rubber bumpes to protect it-self when truck reverse to dock platform.
• 8. Full range toe guard to protect user.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: KS brand power pack ,other brands (Made In China) or imported power pack
• Platform Surface : Antiskid checkered plate sheet
• Main Support: 10# I beam
• Lip thickness: 16mm checkered thickness steel sheet
• Top face steel sheet on the deck:6mm/8mm/10mm optional
• High-pressure oil hose: Rubber hose with double wire steel mesh.

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements
• Electric controller with emergency or without emergency button.

Applications:

1. Site: warehouse, big logistic enterprise, station, wharf, postal transportation, logistics distribution works etc.

2. Folding dock leveler use: Loading/unloading Cargo etc.

Folding dock leveler & thumbnail:

Pit Dock leveler safety precaution:

1. Emergency button

2. Toe guards at both side to protect feet of the operation worker.

3. Maintaince rod break though the lip, fully protect the safety of serviceman.

4. Bumper block protect the dock leveler it-self when lorry reverse to platform.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. 24V low voltage to operate the electric dock leveler
