Hydraulic Telescopic Dock Leveler Automatic Retractable Dock Plate Load Capacity 8000KG 10000KG

Hydraulic Telescopic Dock Leveler Description:

• Hydraulic Telescopic Dock Leveler for safest loading operations.telescopic lip dock levellers are used in special application where a standard swing lip leveller can’t be used (cold environments, container loading operations, docked truck opening door just once parked) The telescopic lip 500 mm /800mm/900/1000 mm long is able to lay on truck chassis in almost all its position.The dock levellers can be supplied in many dimensions, load capacities and working ranges. A full range of options and operating methods are available to fully adjust the dock leveller to suit your requirements.

Noted: Usually the Hydraulic Telescopic Dock Leveler width is 2000mm, it also can be custom as your requirements!.The lip can extend telescopic reached 500/800mm/900/1000mm.

Main Features:

• 1. 20mm thickness milling flute plate make the telescopic lip
• 2. 8-10 pieces "C" or "H" beam to support heavay duty deck.
• 3. Anti-skid high-strength chequered steel on the top face of the platform.
• 4. Full width one -piece tescopic lip which move by hydraulic oil cylinder pull and push.
• 5. Heavy duty high pressure hydraulic cylinders
• 6. First class imported hydraulic power pack, good seal capacity and long lifespan
• 7. Rubber Bumpers to protect machine-self when the truck reverse to dock platform.
• 8. Full range toe guard to protect user when operater use it.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components
• Hydraulic System: ARGO-HYTOS Swiss brand power pack
• Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
• Main Support: 8-10pieces"C" or "H" beam under the deck to supporting.
• Deck lip platform thickness: 20mm checkered steel plate
• High-pressure oil hose: Double steel mesh in the rubber hose.

Optional Configuration:

• Hydraulic Power Pack:ARGO-HYTOS Switzerland brand.
• Electric controller with emergency or without emergency.

Applications:

1. Site: Work Shop, logistic center, big cold storge centre etc.

2. Hydraulic Telescopic Dock Leveler use: Loading/unloading Cargo etc.

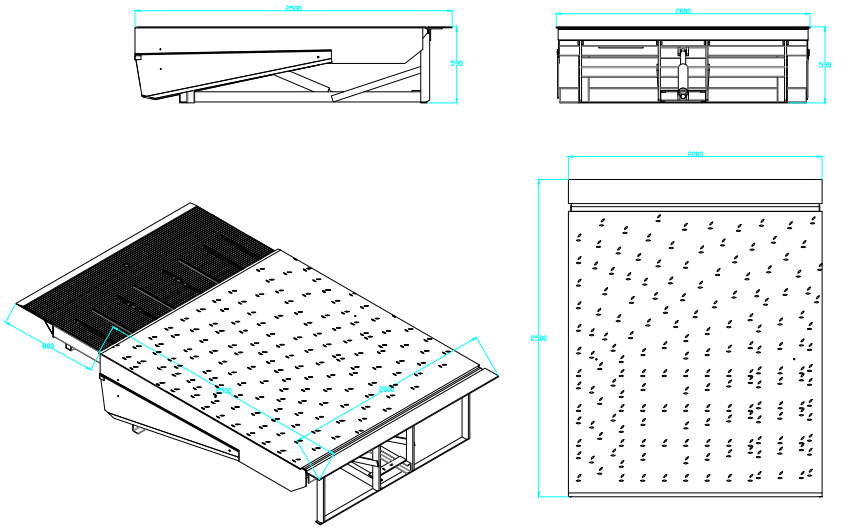

Hydraulic Telescopic Dock Leveler Sketch:

Hydraulic Telescopic Dock Leveler​​ Safety Precaution:

1. Emergency button

2. Toe guards on both side to protect operation worker feet.

3. Maintaince rod break though the lip fully protect the safety of the serviceman.

4. Bumper block protect the dock leveler it-self when truck reverse to th.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. Double cylinders support the lip telescopic that so stable and reliable.
